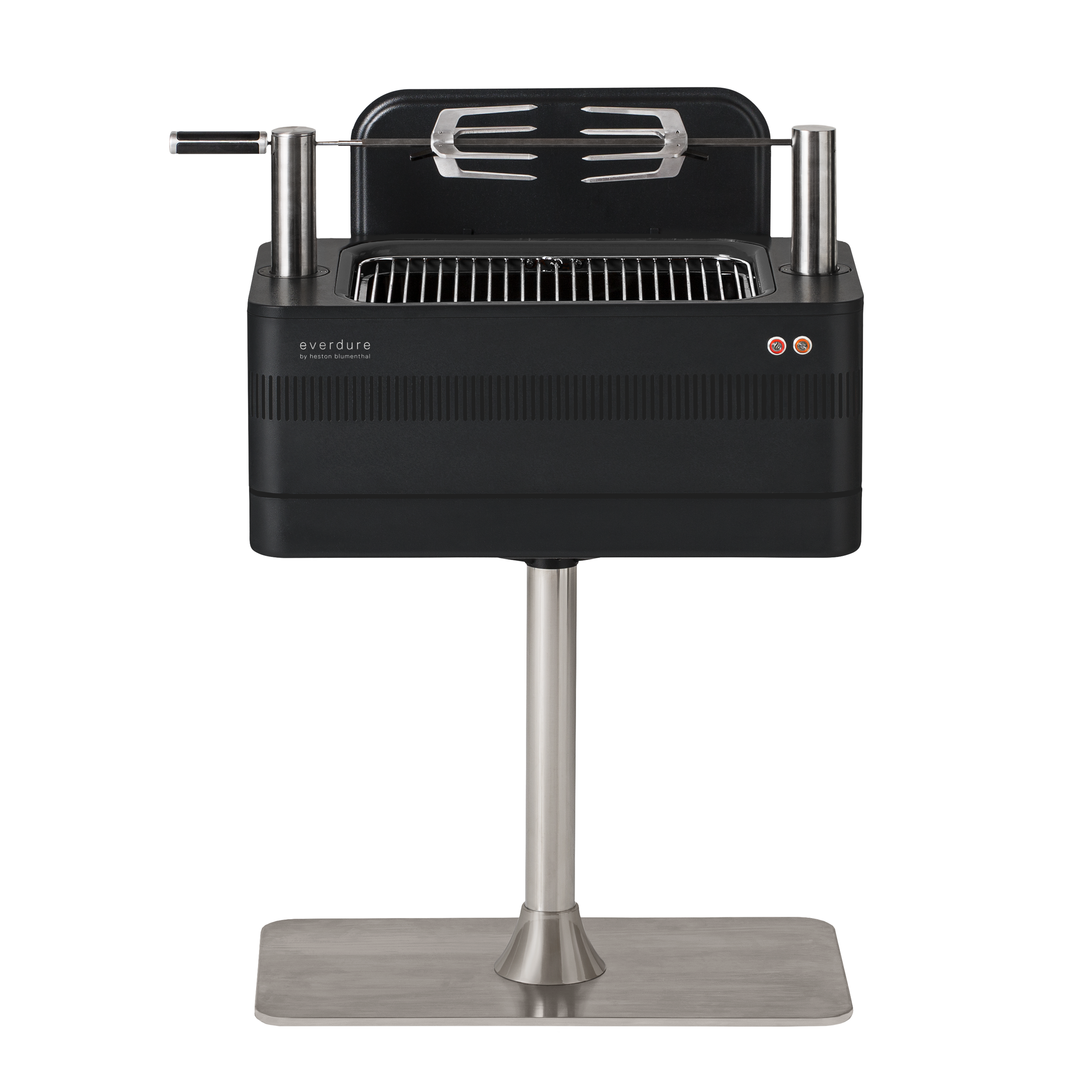

Matte Black FUSION with Pedestal Front View
Matte Black FUSION Rotisserie
Matte Black FUSION Angled With Pedestal
Matte Black FUSION Rotisserie and Lid Storage
Matte Black FUSION with Pedestal and Grill View
Matte Black FUSION with Pedestal and Lid
Matte Black FUSION Angled View
Matte Black FUSION No Pedestal with Rotisserie

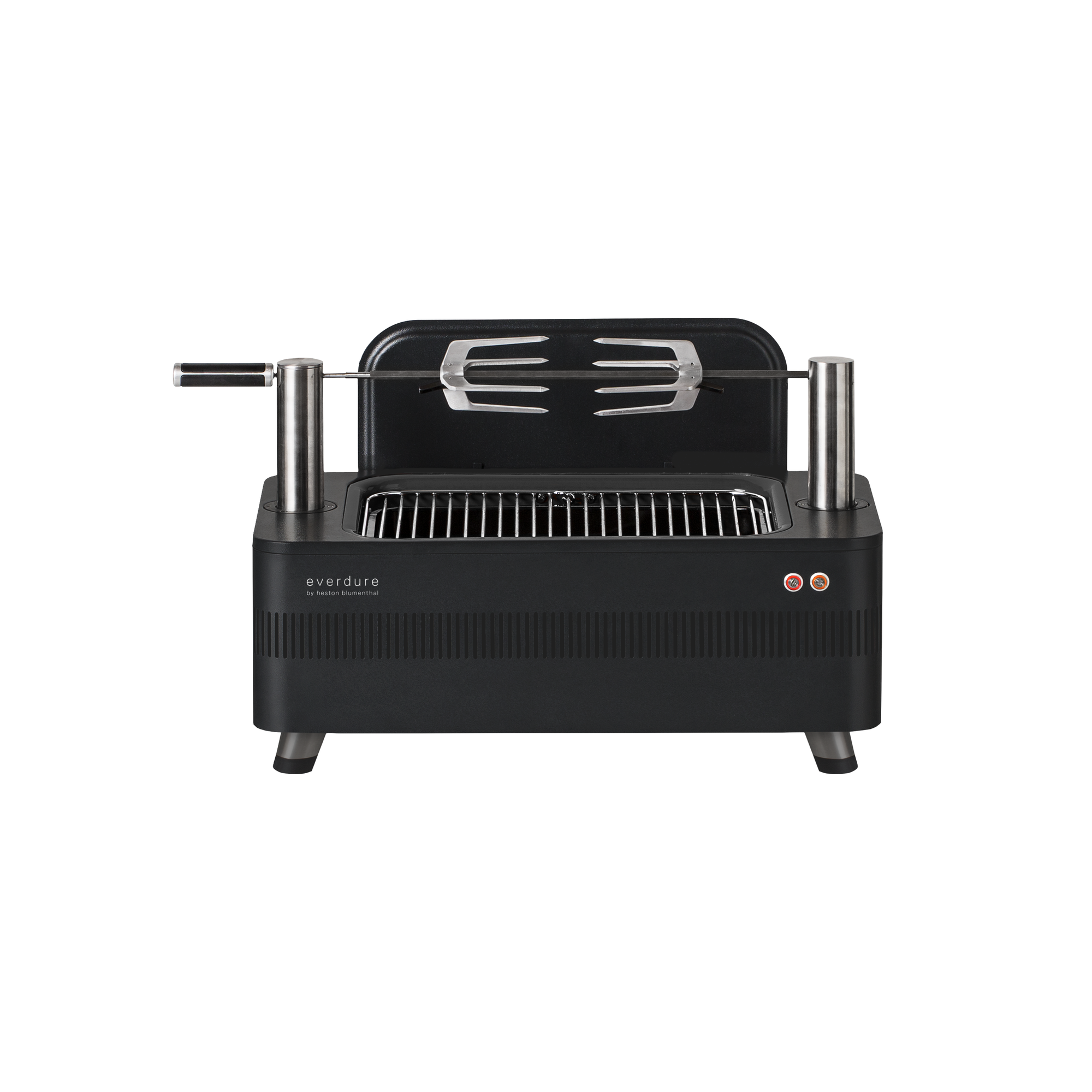

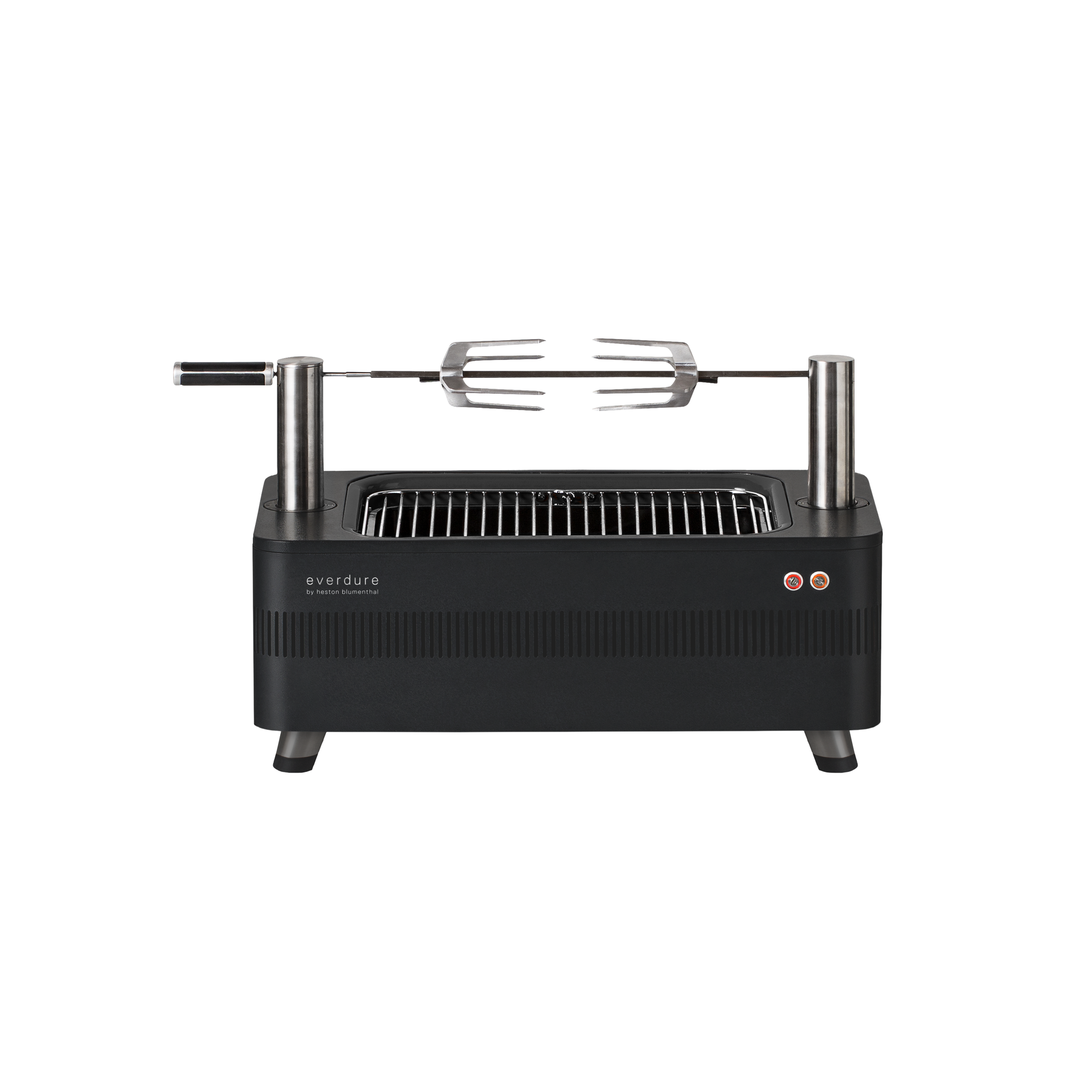

Matte Black FUSION No Pedestal
Matte Black FUSION Freestanding

FUSION™

HBCE1BBSUS

Colour

Authentic charcoal flavor, simplified

A contemporary take on classic charcoal grill


Discover the FUSION™: Whether you're a novice to charcoal grilling or a seasoned pro you will love the simplicity and style of the FUSION™.

Named after its innovative fusion of charcoal and electricity, it draws on the benefits of both, delivering a unique grill experience.

The FUSION™ features the Fast Flame Ignition System™ and Rotiscope Technology™ with its built-in rotisserie system offering multi-level manual height adjustment complemented by 2 Cliplock Forks™.

Cleaning is straightforward with a removable charcoal tray and a single-piece porcelain enamel firebox. The hinged grill ensures safe and easy charcoal reloading.

Dive into a contemporary take on charcoal grilling with the FUSION™.

  • Color in images may differ slightly from product.
  • Product specifications and data are subject to change without notice to improve reliability, function, design, or otherwise.
Regular price$1,713.00
/

• Fast Flame Ignition System™
• Rotiscope Technology™ - Built-in Rotisserie System Powered by a Discrete Motor, with Multi-level Manual Height Adjustment.
• 15kg / 33.07 lbs Rotisserie Capacity.
• Cliplock Forks™
• Built in Storage Area For Rotisserie rod and Cliplock Forks™
• Removable Hinged Chrome Grill for Safe and Easy Charcoal Reloading
• Removable Charcoal Tray
• Durable Porcelain Enamel Firebox For Easy Cleaning
• Portable Grill With Free Standing Legs

• Height - 900 mm / 35.43 in (Poles Up: 1076 mm / 42.36 in)
• Width - 730 mm / 28.74 in (Poles Up: 830 mm / 32.68 in)
• Depth - 419 mm / 16.5 in

• 1 x FUSION™ II Barbeque Chassis Assembly
• 1 x Rotisserie Rod
• 2 x Cliplock Forks™
• 1 x Pedestal Base
• 1x Lid

  • Cooking Area: 1600 cm2

Pairs well with

Matte Black FUSION with Lid
Matte Black FUSION with Rotisserie

Versatile Grill

THE PERFECT BALANCE OF FUNCTION AND FORM

From the subtly integrated rotisserie, to the retractable power cord, the FUSION™ is the perfect balance of function and form, taking design cues from minimalist Danish design.

Charcoal Ignited in 10 Minutes

FAST CHARCOAL BARBEQUING

With a bold, yet slender design, the first time your guests set eyes on the FUSION™, they will wonder what it is. It won’t take you long to win them over. 10 minutes in fact.

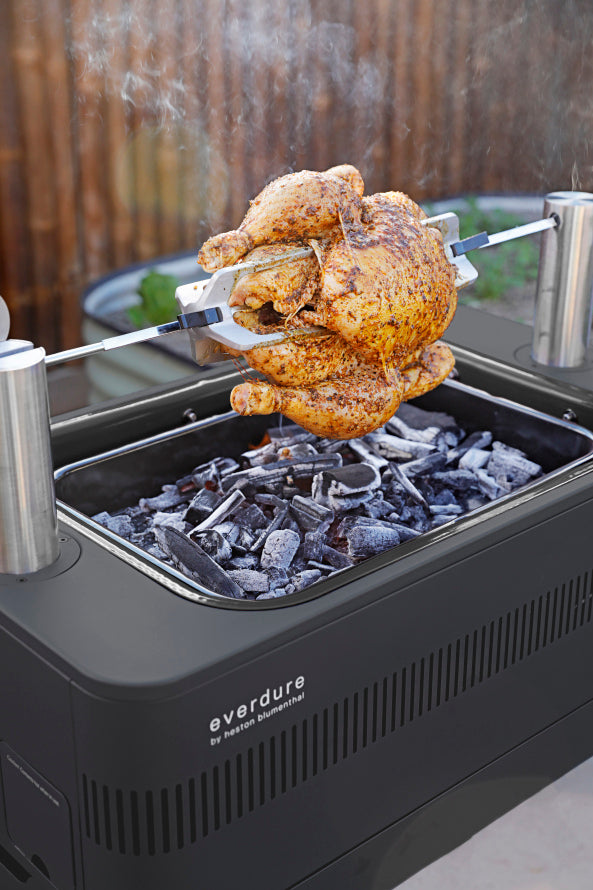

Matte Black FUSION Chicken Rotisserie Cropped

Convenient Features

Equipped with a hinged grill making charcoal reloading simple and convenient
One touch rotisserie pole system

Rotiscope Technology™

Built-in rotisserie system powered by a discrete motor, with manual multi-level height adjustment. Smart in-built storage for Cliplock Forks™ and rotisserie pole.

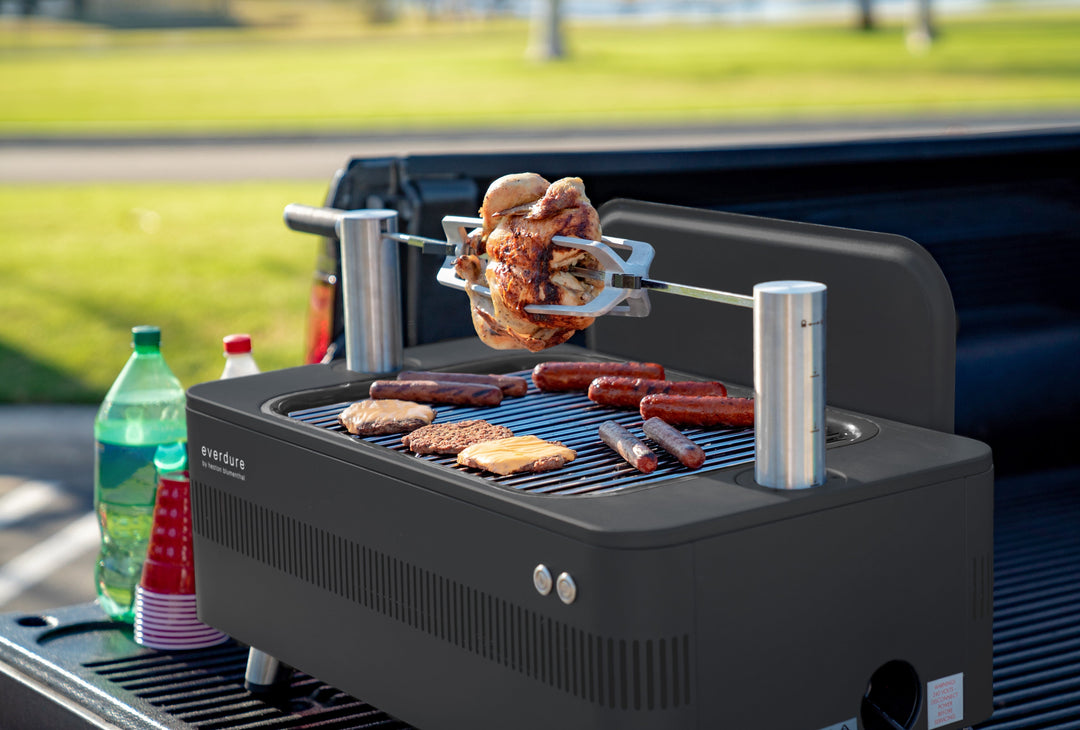

Matte Black FUSION Lifestyle Portable

Portable Charcoal Experience

The FUSION™ can be used away from home, simply lift the barbeque and place on any surface with its freestanding legs.

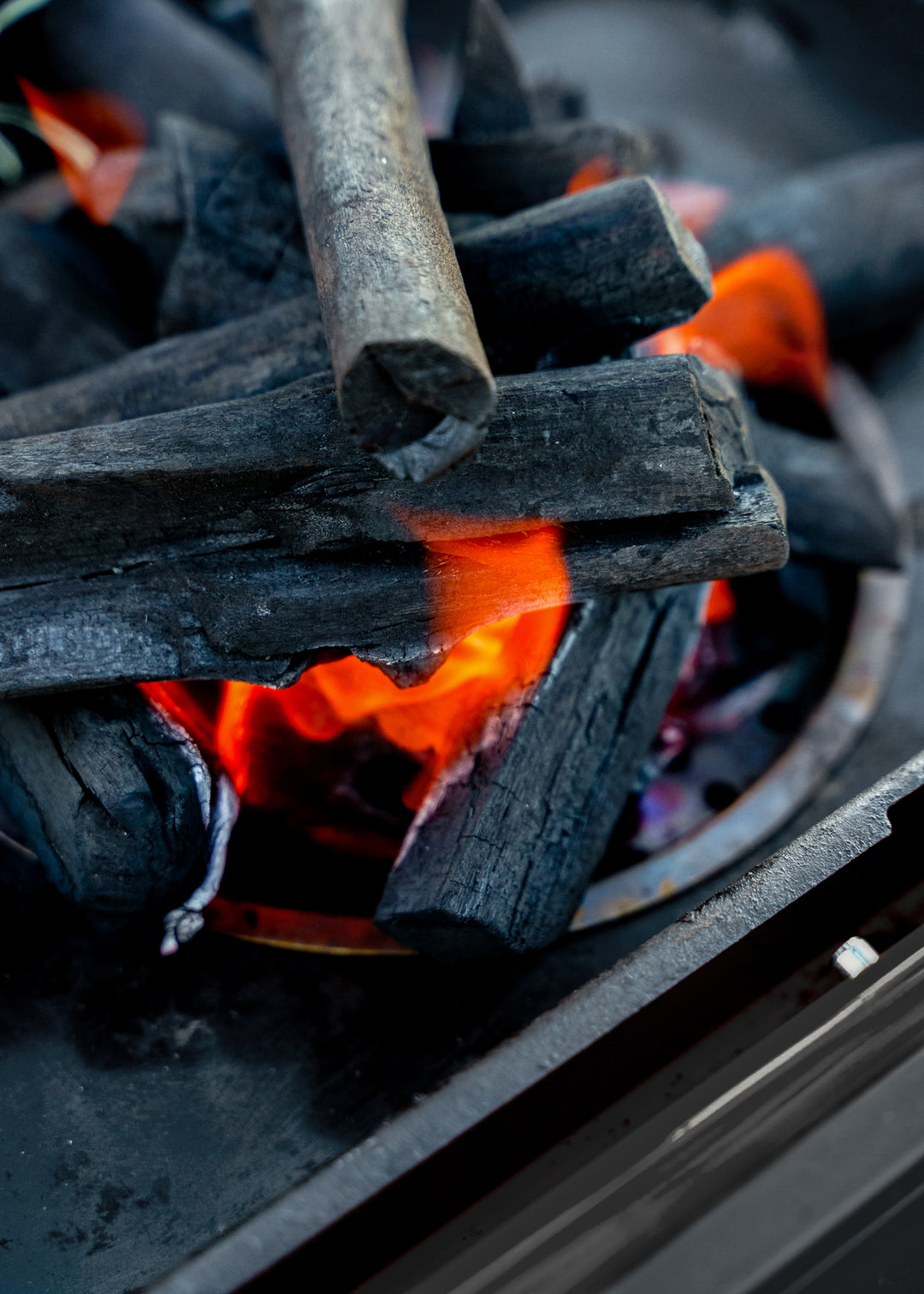

Fast Flame Ignition System™

Ignite your charcoal in just 10 minutes with our integrated quick-start charcoal ignition system.

FUSION™ Deconstructed

Rotiscope Technology™

Built-in rotisserie system powered by a discrete motor, with multi-level manual height adjustment and 15kg / 33.06 lbs capacity. Rotisserie rod and 2 Cliplock™ Forks are included with compact internal storage.

Buy More Cliplock™ Forks

Clever Details

Integrated retractable power cord (1.5m / 4.92 ft). Lid cover can be used as a weather/wind shield and a hinged chrome grill for easy charcoal reloading.

Quick Start Charcoal Ignition

A world first - press a button to ignite your charcoal, thanks to the Fast Flame Ignition System™. Have your charcoal ignited in 10 minutes.

Smart Features

Take your FUSION™ on the go by removing the grill from the pedestal and utilizing the freestanding legs.

Quick and Easy Cleaning

Removeable charcoal tray and single piece porcelain enamel firebox. Simply remove charcoal ash and wipe clean.

You may also like

FAQs

Ignition

Why is the charcoal taking a long time to ignite?

Ensure that your fuel is always kept in a dry place. Damp fuel can take a long time to ignite. We recommend natural lump charcoal for best results. Whilst briquettes can be used, they may take longer to ignite due to the noncombustible materials contained inside the fuel.

What type of charcoal should I use?

For optimum performance, we recommend Everdure by Heston Blumenthal natural lump charcoal. The Fast Flame Ignition System can light briquettes at the press of a button, but due to the large variances in ingredients used by different manufacturers, we cannot guarantee their ignition time.

Can I add more charcoal during cooking ?

Yes. The grills are designed to make refuelling easy, though you should refer to your manual to check maximum advised limits.

Should I use an accelerant to start the coals?

No, you do not need to use an accelerant or coals with an accelerant included.

Is the lid on the FUSION™ designed to place on top to snuff out the coals? Or is it just a dust cover?

No, it is only to be placed on the BBQ when the coals are extinguished and cold. It can be placed on the bracket as a wind break when in use. If direct grilling, it's good if you have time to put a chicken on the rotisserie as the coals continue to burn. Alternatively, have have a Hot Coal Bin you can purchase to put the burning coals into and extinguish with water when you have finished cooking.

Cooking tips

How do I avoid burning on the outer ends and simmering towards to middle?

For even cooking you will need to spread the charcoals in an even layer.

How do I remove the rod once the meat is ready?

We always recommend using heat protective gloves when handling the rotisserie. Please ensure to switch the motor off before attempting to remove the rod. Once the motor has stopped turning, lift up the lid on the left hand pole and grab the rod handle securely. With your other hand, grab the opposite end of the pole and gently remove it from the motor drive shaft. Put the meat and rod onto a large preparation area and allow to rest. Once cool, remove the forks and rod from the meat and prepare to serve.

Please remember: Never attempt to remove the rod with only one hand and never remove it whilst the motor is still turning. Failure to follow these steps can result in injury and / or product damage.

Do you empty the tray after each cook and use fresh charcoal each time or do you put them in a hot coal bin, then use a mix of new and old charcoal for the next cook?

You should definitely empty the tray and use fresh charcoal each time. Don't empty the night you cook as they will still be hot. Let it burn itself out and then just use a dustpan and brush to scoop the small amount of dust that's left into the bin the next day.

Best ways to cool down and safely dispose of the BBQ coal once used?

Coal/ash can take a very long time to cool (up to a day or so). Do not rush the process of removing the coals. It will depend on how much coal you have used as to when it will be cool. Once cooled, you can remove the used coals into a metal bucket with lid. You can put these remaining ash onto the garden or dispose of in the bin.

As the FUSION™ does not have a lid how do I know how long to cook for?

You will need to use a thermometer as cooking time depends on how close you get to the coals. Generally, a chicken will take 1hr, if it's not too windy and you have the rotisserie 50% down. The higher the rotisserie, the longer the cook but, you will achieve a more developed smoky flavour. The lower, the quicker. You can build hotter or cooler zones with the charcoal for great temperature control. Our quantum charcoal and woodchip tongs are perfect for this!

Example: 2kg Pork - spread charcoal out to the length of the pork and set rotisserie on height number 2 allow the charcoal burn a little. Massage salt and a little oil into the skin, then cook until 65-70 degrees Celsius.

Technology & features

Can I leave the Rotisserie rod and Cliplock™ Forks in the storage area once coals are ignited?

Yes. You can always access the storage area of your barbeque, but should take extra care if lit, as the contents may be hot.

Can I switch the element back on during cooking?

For extra safety, the FUSION™ has overheat protection, which may prevent the element from re-activating until the barbeque cools down.

How does this work?
If you add more coal during cooking, and press the Fast Flame Ignition button, the element will only activate if the BBQ is below a preset temperature. If it doesn't come on, it usually means the charcoal will light promptly without intervention.

How do I set up my rotisserie?

The forks and rods are all stored in the small storage section located at the side of the product. Simply depress each pole to release from the storage position and select one of 3 defined heights.

Get your meat trussed onto the rotisserie rod and secure with the Cliplock™ Forks.

Insert the end of the rod to rotisserie pole, press the on switch at the front (marked with arrows) and you're off and cooking.

The poles seem to be angled out slightly on the FUSION™, is this normal?

Yes. If you lift the small cap on the pole where the handle drops into, you will see a very small raised area. On the end of the rod (near the handle) you will see a small area that has been cut out. If this cut out area of the rod comfortably fits over the small raised area on the pole, then the rod is locked into position.

The two poles on the BBQ are slightly angled so they can retract back into the body of the BBQ smoothly and without a lot of friction.

Setting up the FUSION™ rotisserie for first use.

When setting up your FUSION™ rotisserie for the first time, simply download and follow the attached instructions.

How much weight can I add ?

The FUSION™ motor is rated to 15kg. Before purchasing meat, it is important to measure the length so you can be certain that it fits on the BBQ rather than concentrating on the weight.

If you want to rotisserie meat that contains a large bone, such as leg of lamb, simply ask your butcher to remove the bone and roll it before you taking it home.

How long can I run the motor for?

We recommend using the FUSION™ rotisserie for maximum 3.5 hours at any one time. If you need to cook for longer, please ensure that the BBQ and parts are allowed to cool before starting again.

Learn more

Can I use an extension cord?

Yes, the retractable 10amp power cord can be connected to an outdoor extension cord. Please do not use an indoor extension cord. Extension cords that do not exceed 10m in length may be used

  • Always check the condition of the cord before use
  • Never use an extension cord in the rain
  • The extension cord must be outdoor rated (12-15 A) and approved

What are the electrical safety recommendations for the FUSION™?

  • Avoid leaving your appliance uncovered. Continuous exposure to rain, snow or high humidity may lead to premature deterioration and product failure.
  • Regular cleaning and maintenance will help keep your appliance in great working order.

Can the FUSION™ be used indoors?

No. Like most barbeques, the FUSION™ is designed for outdoor use only.

Cleaning & maintenance

Where should I store my BBQ?

When not in use, be sure to keep your BBQ in a well-protected area. For the best protection, we recommend covering it with a fitted Everdure by Heston Premium cover to avoid weather damage.

Maintaining the stainless steel charcoal grid.

After each use, clean the grid with warm soapy water to remove ash residue.Ash that has built up and subsequently hardened, can trap moisture from the air causing premature erosion and discoloration. Remove any hardened ash with some soapy water and a fine wire brush.

After cleaning, allow the grid to dry and lightly season with some vegetable oil.

Place the part back inside the black tray and cover the barbeque with an Everdure by Heston premium cover.

Can I put the grills and Cliplock™ Forks into the dishwasher after use?

We do not recommend cleaning these parts in the dishwasher. Due to the various chemical ingredients found in dishwasher detergent, parts may discolour as a result. We recommend warm soapy water with a low chemical content.

How often should I clean my BBQ?

Once the BBQ has cooled, a simple wipe down is all that's needed. We recommend cleaning your BBQ after every use, but don't use harsh chemicals, or abrasive wire, as this may damage the protective coating on the grills and outer body. To help make cleaning easier, the firebox is designed with minimal angles and joins, which can trap grease. You can also oil grills before and after use to help prevent food sticking.

How do I clean my BBQ grill plates?

Soap and water with a scotch pad or steel wool will work. For stubborn grime, soak the plates in a bucket of warm, soapy water then scrub with a suitable brush. Repeat until clean. Just make sure you clean along the grill and not across it.

Can I use phosphoric based cleaning solution on my grills?

Do not use phosphoric based cleaners as the grills are cast iron with a vitreous enamel coating. Vitreous enamel, also called porcelain enamel, is a material made by fusing powdered glass to a substrate by firing, usually between 750 and 850°C (1,380 and 1,560°F). The powder melts, flows, and then hardens to a smooth, durable vitreous coating. If your porcelain grill grates are really dirty, you can try applying a baking soda solution to them. Make a paste by combining 1/2 cup (90 g) of baking soda with 1/4 cup (59 ml) of warm water. Apply the paste to the grill grates. Let it sit for 20 minutes and then clean it off with a soft bristle grill brush. Make sure you get all of the paste off before you cook anything on the grill, and clean the brush when you're done. You could remove the grates and let the solution soak overnight, if necessary, in a sink or tub. Rinse the solution off, then replace the grates and clean them with a grill brush.

How can I clean below the burners/ ignition?

Warm soapy water is fine but you can also dissolve a dishwasher tablet in warm water and then use that to dissolve the grease and fat.

Will the cover keep my BBQ dry?

Our BBQ covers, are waterproof and are made of 425 GSM with a waterproof lining. Please be aware that you can get humidity and condensation forming between the cover and the BBQ depending on your climate and location.

How do you clean the charcoal tray?

Remove any debris that has ended up in the tray. When it is empty, use warm soapy water or dishwashing liquid to dissolve grease and fat.

Troubleshooting

Why is the paint peeling inside my BBQ?

There are a few possible causes:

  • Something may have burnt onto the base and has been scrubbed off to clean it. As an example, marinades have a high sugar content and when in a localised spot they can ignite and have a higher burning temperature
  • A corrosive cleaner used for cleaning the grill plates that may have dripped on to the base
  • Manufacturing - it may have been caused by contamination of the aluminium which was not visible when painting the base of the product. This may have prevented the paint adhering to the alloy. During the Q.A inspection the paint would have passed as there would not have been any indication of the contamination.

Depending on the severity of the paint removal, you may wish to try using a heat resistant paint to cover the exposed spot. Alternatively, please contact our customer service team, who will assist you further.

There is a noise coming from the motor, is this normal?

The motor may, on occasion, produce an operating noise. To help reduce this, we recommend applying a small amount of lubricant spray into the motor drive shaft before using it for the first time.

To help maintain the motor during times of regular use, we recommend adding a small amount of lubricant spray once a month. To help maintain a smooth rotation, please clean regularly with a damp cloth.

Please do not overspray the motor as lubricant as this may drip into the BBQ causing a chemical smell.

What do I do if the appliance "trips" the Residual Current Sensitive Device (RCD)?

Unplug the appliance and try another socket location

If using an extension cord, plug the appliance into a socket without the extension cord

If the appliance has recently been exposed to wet conditions, place indoors and allow time to dry

If the appliance continues to trip when used with different socket locations, contact us

What do we do if something is broken?

Contact us for support

The poles seem to be angled out slightly on the FUSION™, is this normal?

Yes. If you lift the small cap on the pole where the handle drops into, you will see a very small raised area. On the end of the rod (near the handle) you will see a small area that has been cut out. If this cut out area of the rod comfortably fits over the small raised area on the pole, then the rod is locked into position.

The two poles on the BBQ are slightly angled so they can retract back into the body of the BBQ smoothly and without a lot of friction.
